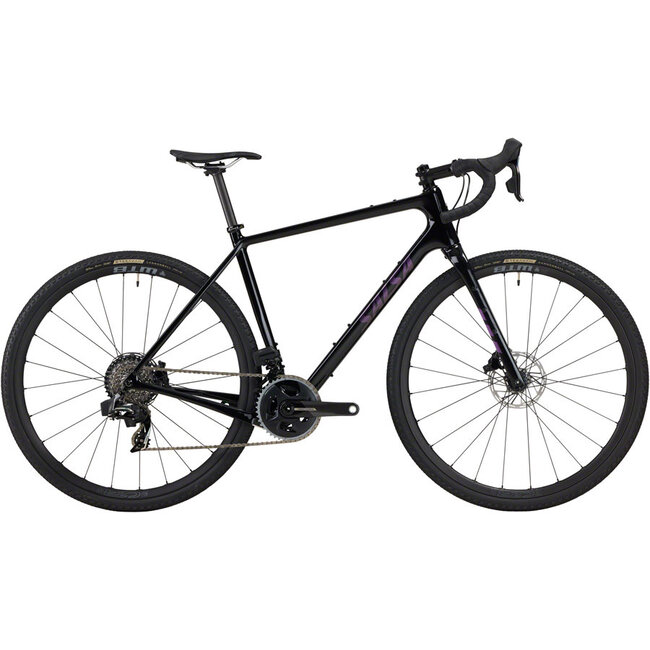

Warbird C Force AXS Wide is our gravel race bike, and unlike other race bikes out there, we focus on comfort. Why? Because comfort = speed. Warbird’s carbon fiber frame uses our gravel race geometry and Class 5™ VRS (vibration reduction system) to keep you feeling fast mile after gritty mile. Warbird’s cargo capacity makes it easier to stay supplied with extra water or even your roadside bivy bag for those long rides and races. SRAM’s Force AXS Wide drivetrain delivers precision electronic shifting and gear range for days. Go get ‘em.
Frameset
- Frame
- Warbird Carbon
- Fork
- Waxwing Deluxe V2
- Color
- Mustard Yellow
- Rear Shock
- N/A
Drivetrain
- Front Derailleur
- SRAM Force AXS Wide
- Rear Derailleur
- SRAM Force AXS
- Cassette
- SRAM Force XG-1270 D1, 10–36t, 12-speed
- Chain
- SRAM Force D1
- Crankset
- SRAM Force D2, DUB, Wide, 43/30t
- Shifter
- SRAM Force AXS HRD
- Brakes and Rotors
- SRAM Force HRD brakes, SRAM Paceline rotors (Center Lock, 160mm)
Components
- Headset
- FSA NO.42/ACB
- Stem
- Salsa Guide
- Handlebar
- Salsa Cowbell Carbon
- Grips/Bar Tape
- Velo anti-slip, shock-proof silicone tape
- Seatpost
- Salsa Guide Carbon
- Saddle
- WTB SL8 Medium Cromoly SL
Wheels
- Front Wheel
- DT Swiss 370 12 x 100mm hub, WTB CZR i23 700c carbon rim, 24h
- Rear Wheel
- DT Swiss 370 Ratchet LN 12 x 142mm hub, WTB CZR i23 700c carbon rim, 24h
- Tires
- Teravail Cannonball 700c x 42mm, Durable casing, tubeless-ready
Weight
- Complete Bike Weight
- TBD
- Max Tire OD
- 700c: 716mm / 650b: 696mm (Some front derailleurs may reduce tire clearance. Check manufacturer’s specifications to confirm clearance before installing.)
- Design Wheel/Tire Size
- 622 - 32 (700 x 32mm)
- Alternate Wheel/Tire Size
- 622 – 32-45 (700c x 32–45mm / 1.2–1.8”) / 584 – 47-51 (650b x 47mm–51mm / 1.85–2.0”)
- Suspension Fork Length (Travel)
- 436.7mm axle-to-crown (40mm travel)
- Rigid Fork Length
- 405mm
- Fork Offset
- 50mm
- Headset-Upper
- IS41
- Headset-Lower
- IS52
- Seatpost
- 27.2mm
- Seat Collar
- 32.0mm
- Bottom Bracket
- BB86 PressFit
- Crankset
- 1x: 44t max; 2x: 52/36t max, 46/30t minimum
- Rear Brake (Rotor)
- Flat mount 140, 140–160mm, flat mount frame standard 20mm thickness, 27mm bolt length
- Rear Spacing
- 142mm
- Rear Axle
- M12 x 167L, TP = 1.5, TL = 20mm
- Derailleur Hanger
- Hanger 465, QBP# FS2322
- Fender Mounts
- Yes, required fender hardware included
- Rack Mounts
- 165 mm Low-rider compatible. Salsa Down Under rack recommended.
- Water Bottle Mounts
- Frames up to 54cm: 2 in main triangle, frames 56cm and larger: 3 in main triangle
- Downtube Accessory Mount
- Yes, one pair
- Toptube Mounts
- Yes, compatible with Salsa Toptube bag
- Stem Clamp
- Ø28.6mm
- Crown Race
- Integrated SHIS 40, 36° angle
- Front Brake (Rotor)
- Flat mount 160, flat mount rear standard, 35mm thickness, 42mm bolt length
- Front Spacing
- 12 x 100 mm TA
- Front Thru-Axle
- M12 x 120L, TP = 1.5, TL = 12mm
- Three-Pack Mounts
- One mount per fork leg.
- Front Axle
- M12 x 120L, TP = 1.5, TL = 12 mm
| Size |
49cm |
52.5cm |
54.5cm |
56cm |
57.5cm |
59cm |
61cm |
| A. Effective Top Tube |
499 |
525 |
545 |
560 |
575 |
590 |
610 |
| B. Stand Over |
670.2 |
714.48 |
744.3 |
770.11 |
785.96 |
808.4 |
830.55 |
| C. Reach |
360.24 |
368.13 |
371.97 |
381.19 |
390.42 |
399.65 |
407.74 |
| Crank Arm Length |
165 |
170 |
170 |
172.5 |
172.5 |
175 |
175 |
| D. Stack |
517.85 |
547.09 |
565.97 |
584.85 |
603.73 |
622.61 |
641.5 |
| E. Total Seat Tube Length |
390 |
440 |
475 |
510 |
520 |
545 |
570 |
| F. Headtube Length |
90 |
120 |
140 |
160 |
180 |
200 |
220 |
| G. Headtube Angle |
71 |
70.75 |
70.75 |
70.75 |
70.75 |
70.75 |
70.75 |
| H. Seat Tube Angle |
75 |
74 |
73 |
73 |
73 |
73 |
72.5 |
| Handlebar Width |
380 |
400 |
420 |
440 |
460 |
460 |
460 |
| I. BB Drop |
70 |
70 |
70 |
70 |
70 |
70 |
70 |
| J. BB Height |
279 |
279 |
279 |
279 |
279 |
279 |
279 |
| K. Chainstay Length |
430 |
430 |
430 |
430 |
430 |
430 |
430 |
| L. Fork Length Axle to Crown |
405 |
405 |
405 |
405 |
405 |
405 |
405 |
| M. Fork Offset |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
| N. Wheelbase |
996.14 |
1011.96 |
1022.39 |
1038.21 |
1054.03 |
1069.85 |
1084.54 |
| Recommended Rider Height |
142cm–157cm |
155cm–165cm |
162cm–173cm |
170cm–180cm |
178–188cm |
185–193 cm |
190cm–UP |
| Stem Length |
70 |
70 |
80 |
90 |
90 |
100 |
110 |
Measurements based on:
- A Warbird Carbon Fork which is 405 x 50mm offset
- A 700c x 32mm tire measuring 698mm in diameter
- Standover for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center
