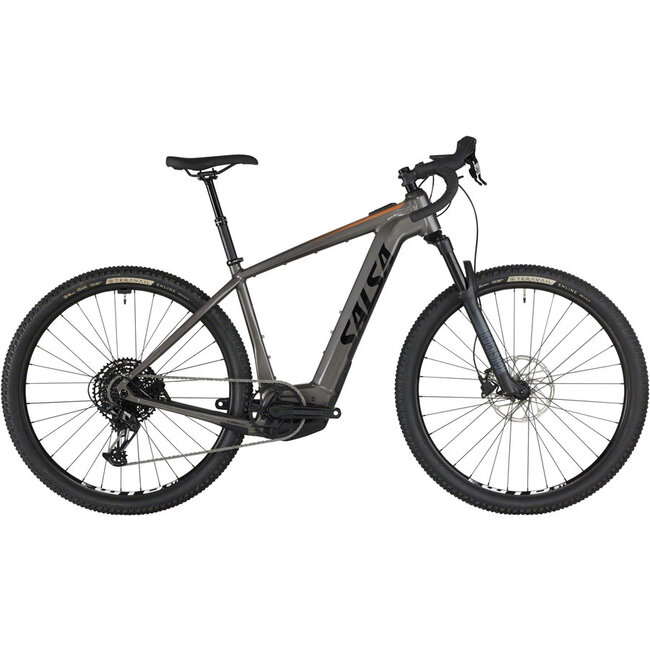

Tributary Apex Eagle SUS makes backcountry odysseys more accessible than ever. Our egravel geometry puts you in a stable, comfortable riding position on the 6061-T6 aluminum frame. A 120mm suspension fork and our Class 5™ VRS (vibration reduction system) devour rocks, ruts, and washboard roads. Bosch’s Performance Line Speed mid-drive system and 625Wh battery help you expand your range of operations — explore every spur, see what’s at the top of that silly-steep climb, and venture miles farther than usual in less time. Rack and Three-Pack mounts let you load up without feeling the weight penalty (be the hero who brings the cast-iron to the overnighter). SRAM’s Apex Eagle drivetrain grants you a wide-range 12-speed cassette and the joy of perfect, effortless shifts every time. Tributary Apex Eagle will show you what adventure ebikes are capable of, so you’d better start plotting.
Frame
Tributary Aluminum
Color
Charcoal
Suspension Fork
RockShox 35 Gold, 120mm
Headset
Acros IS52/IS52
Seatpost
TranzX YSP18DL dropper, 100mm travel
Stem
Easton EA50
Grips/Bar Tape
Velo anti-slip, shock-proof silicone gel tape
Saddle
WTB Volt Medium Steel
Handlebar
Salsa Cowchipper
Lights Included
No
Front Derailleur
N/A
Rear Derailleur
SRAM Apex Eagle
Cassette
SRAM PG1210, 11–50t, 12-speed
Drive Type
Mid-drive
Chain
SRAM Apex
Crankset
FSA CK-762/IS
Shifter
SRAM Apex Eagle
Brake Levers
SRAM Apex Eagle
Brake Calipers
SRAM Apex Eagle
Assist Levels
4
Rotors
SRAM Centerline, Center Lock (203mm front, 180mm rear)
Drive Unit
Bosch Performance Line Speed with Mini Remote Dropbar and Intuvia 100 display
Ebike Classification
Class 3
Max Assist Speed
28 mph / 45 kph
Motor Torque
85Nm
Max Motor Assist
340%
Battery Capacity Watt Hours
625Wh
Battery Type
Li-Ion
Removable Battery
Removable for service
Battery Power Volts
36V
Estimated Charge Time
5 hours
Charger Included
Yes
Range Estimate
72 miles
Throttle
No
Walk Assist
Yes
Front Tire
Teravail Ehline 29 x 2.3", Durable casing
Rear Tire
Teravail Ehline 29 x 2.3", Durable casing
Front Hub
Novatec D791SB-B15-CL
Rear Hub
Novatec D982TSB-CL-B12-11S
Spoke
2.0, Black
Rim
WTB ST 27mm
Complete Bike
49.5 lb for Medium
*Specifications are subject to change without notice
| Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| A. Effective Top Tube | 535.0 | 560.0 | 585.0 | 610.0 | 635.0 |
| B. Stand Over | 725.4 | 737.6 | 776.6 | 808.8 | 814.6 |
| C. Reach | 373.7 | 398.7 | 417.6 | 437.6 | 457.7 |
| D. Stack | 601.8 | 601.8 | 624.8 | 643.2 | 661.7 |
| E. Total Seat Tube Length | 380.0 | 405.0 | 460.0 | 500.0 | 520.0 |
| F. Headtube Length | 100.0 | 100.0 | 125.0 | 145.0 | 165.0 |
| G. Headtube Angle |
67.0
|
67.0
|
67.0
|
67.0
|
67.0
|
| H. Seat Tube Angle |
75.0
|
75.0
|
75.0
|
75.0
|
75.0
|
| I. BB Drop | 70.0 | 70.0 | 70.0 | 70.0 | 70.0 |
| J. BB Height | 303.5 | 303.5 | 303.5 | 303.5 | 303.5 |
| K. Chainstay Length | 445.0 | 445.0 | 445.0 | 445.0 | 445.0 |
| L. Fork Length Axle to Crown | 498.4 | 498.4 | 498.4 | 498.4 | 498.4 |
| M. Fork Offset | 51.0 | 51.0 | 51.0 | 51.0 | 51.0 |
| N. Wheelbase | 1094.0 | 1119.0 | 1148.0 | 1176.0 | 1204.0 |
| Crank Arm Length | 165.0 | 165.0 | 170.0 | 170.0 | 170.0 |
| Handlebar Width | 440.0 | 460.0 | 480.0 | 500.0 | 520.0 |
| Recommended Rider Height | 155.0 - 163.0 | 163.0 - 170.0 | 170.0 - 178.0 | 178.0 - 185.0 | 185.0 |
| Stem Length | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 |
