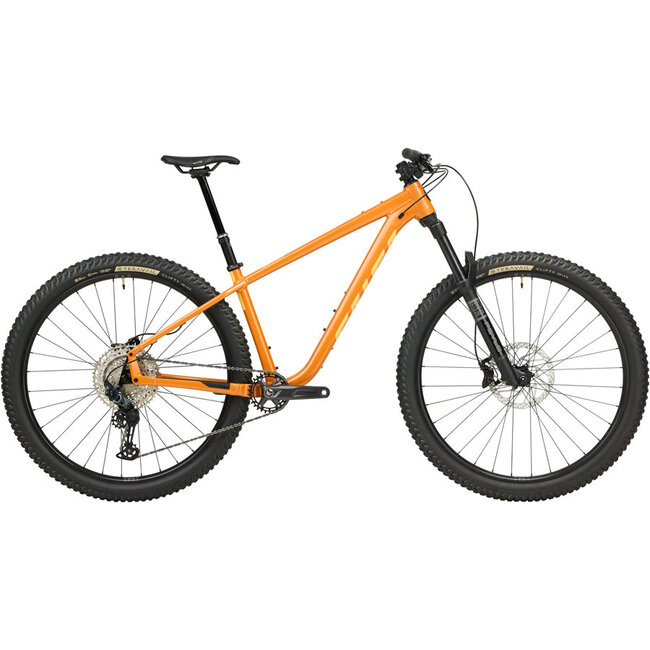

With Timberjack, we set out to design the most versatile hardtail mountain bike around. Timberjack SLX 29 starts with an aluminum frame built on progressive trail geometry that’s plenty sendy on descents without feeling awkward pedaling back up. The 140 mm RockShox Psylo Silver RC fork handily manages trail chatter for a controlled ride. With ample on-bike storage, you can leave the backpack or hip pack at home. Our Alternator 2.0 dropouts are adjustable to allow for many different drivetrain options and ride characteristics. 29 x 2.5" wheels and tires offer a nice blend of grip and rolling efficiency. Shimano’s SLX 1 x 12 drivetrain hits the sweet spot of functionality and affordability.
Frameset
- Frame
- Timberjack Alloy V2
- Fork
- RockShox Psylo Silver RC, 140mm, 44mm offset
- Color
- Terracotta Orange
- Rear Shock
- N/A
Drivetrain
- Front Derailleur
- N/A
- Rear Derailleur
- Shimano SLX M7100 SGS
- Cassette
- Shimano Deore M6100-12, 10–51t, 12-speed
- Chain
- Shimano Deore M6100
- Crankset
- Shimano MT510, 30t
- Shifter
- Shimano Deore M6100 I-SPEC EV
- Brakes and Rotors
- Shimano MT420 4-piston brakes, Shimano RT30 rotors (Center Lock, 203mm front, 180 mm rear)
Components
- Headset (Upper/Lower)
- FSA Orbit 1.5E ACB
- Stem
- Salsa Guide Trail
- Handlebar
- Race Face Chester 35
- Grips/Bar Tape
- Salsa File Tread
- Seatpost
- TranzX YSI05 RAD+, Shimano MT500 lever, 30 mm travel adj
- Saddle
- WTB Solano Medium
Wheels
- Front Wheel
- Shimano MT400-B 15 x 110 mm hub, WTB ST i30 32h 29" rim
- Rear Wheel
- Shimano MT410-B Micro Spline 15 x 110 mm hub, WTB ST i30 32h 29" rim
- Tires
- Teravail Clifty 29 x 2.5", Durable casing. Tubeless accessorites: WTB TCS Rim Strip, tubeless tape, valves, and 8oz tire sealant included
Weight
- Complete Bike Weight
- 32 lbs 14 oz (size Medium)
*Specification and pricing subject to change without notice.
- Tire Size Range for 622/29" Wheels
- 53–66 mm (2.1–2.6")
- Tire Size Range for 584/27.5" Wheels
- 71 mm (2.8")
- Maximum Wheel/Tire Diameter
- 760.5 mm (29.95")
- Minimum Wheel/Tire Diameter
- 728 mm (28.6")
- Suspension Fork Length (Travel)
- 511–563 mm (100–150 mm travel)
- Rigid Fork Length
- 483–501 mm
- Fork Offset
- 42–51 mm
- Headset-Upper
- ZS44
- Headset-Lower
- ZS56
- Seatpost
- 30.9 mm
- Seat Collar
- 35 mm
- Dropper Compatible (Routing)
- Yes (internal)
- Front Derailleur Mount
- NOT COMPATIBLE
- Bottom Bracket
- 73 mm BSA
- Crankset (Max Ring)
- 52 mm Boost chainline 1x only (34t)
- Rear Brake (Rotor)
- IS mount (180 mm max)
- Rear Spacing
- 148 mm
- Rear Axle
- M12 x 180L, TP = 1.5, TL = 20
- Derailleur Hanger
- Alternator 2.0 Swing Plate
- Water Bottle Mounts
- XS = 1, SM–XL = 2
- Rack Mounts
- Yes, uses Alternator 2.0 plates, requires Salsa Rack-Lock
- Fender Mounts
- NOT COMPATIBLE
- Accessory Mounts
- Yes, one pair
- TopTube Mounts
- Yes, compatible with Salsa EXP Series Direct Mount Top Tube Bag
- Downtube Accessory Mounts
- Yes, one pair
Size |
XS |
SM |
MD |
LG |
XL |
A. Effective Top Tube |
571 |
595 |
616 |
640 |
660 |
B. Stand Over |
674 |
691 |
710 |
738 |
759 |
C. Reach |
407 |
431 |
451 |
472 |
490 |
Crank Arm Length |
165 |
165 |
170 |
170 |
180 |
D. Stack |
603 |
603 |
607 |
616 |
625 |
E. Total Seat Tube Length |
343 |
370 |
395 |
432 |
457 |
F. Headtube Length |
100 |
100 |
105 |
115 |
125 |
G. Headtube Angle |
66 |
66 |
66 |
66 |
66 |
H. Seat Tube Angle |
74.8 |
74.8 |
74.8 |
74.8 |
74.8 |
Handlebar Width |
780 |
780 |
780 |
780 |
780 |
I. BB Drop |
54 |
54 |
54 |
54 |
54 |
J. BB Height |
319 |
319 |
319 |
319 |
319 |
K. Chainstay Length |
423.5 |
423.5 |
423.5 |
423.5 |
423.5 |
L. Fork Length Axle to Crown |
551 |
551 |
551 |
551 |
551 |
M. Fork Offset |
44 |
44 |
44 |
44 |
44 |
N. Wheelbase |
1116 |
1140 |
1162 |
1187 |
1209 |
Recommended Rider Height |
157cm–163cm |
160cm–175cm |
173cm–183cm |
180cm–191cm |
188cm–UP |
Stem Length |
50 |
50 |
50 |
50 |
50 |
Measurements based on:
- an 510.5mm fork which is equivalent to an average 543mm length 29" 130mm suspension fork at 25% sag
- a 27.5 x 2.8" tire measuring 724.5mm in diameter
- Standover is measured vertically to top of top tube from a position 50mm forward of BB center with an unsagged suspension fork
- Wheelbase at 420mm chainstay length
