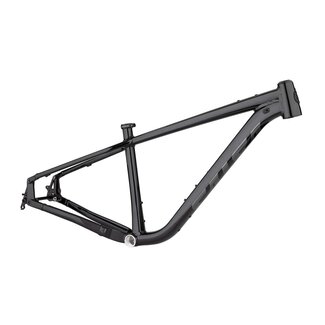

Timberjack Frame

$749.00

$599.99 Excl. tax

Timberjack is built from our proprietary, top-shelf 6061-T6 aluminum tubing, which is double- and triple-butted in the main triangle for a light, responsive, and durable frame with great trail feel. Read more.

The Salsa Timberjack frame is full of potential. Build it into a high-end trail toy or a fun parts-bin bikepacking rig. The aluminum frame’s progressive trail geometry rewards downhill skill but is plenty capable of climbing with finesse. On-bike storage keeps the weight of your ride essentials down low on your frame rather than on your back.

Timberjack Frame in action

Key Features

Additional Information

Timberjack is built from our proprietary, top-shelf 6061-T6 aluminum tubing, which is double- and triple-butted in the main triangle for a light, responsive, and durable frame with great trail feel.

Frameset

Frame: Timberjack v2 Aluminum
Fork: N/A
Color: Black
Rear Shock: N/A

Components

Headset (Upper/Lower): FSA Orbit NO.57E 1.5 ZS
Seatpost: Salsa Lip-Lock Seat Collar

Weight

Complete Bike Weight: 5 lbs 8 oz for Medium, with axle, Alternator Plates, and headset

*Specification and pricing subject to change without notice.

Tire Size Range for 622/29" Wheels: 53–66 mm (2.1–2.6")
Tire Size Range for 584/27.5" Wheels: 71 mm (2.8")
Maximum Wheel/Tire Diameter: 760.5 mm (29.95")
Minimum Wheel/Tire Diameter: 728 mm (28.6")
Suspension Fork Length (Travel): 511–563 mm (100–150 mm travel)
Rigid Fork Length: 483–501 mm
Fork Offset: 42–51 mm
Headset-Upper: ZS44
Headset-Lower: ZS56
Seatpost: 30.9 mm
Seat Collar: 35 mm
Dropper Compatible (Routing): Yes (internal)
Front Derailleur Mount: NOT COMPATIBLE
Bottom Bracket: 73 mm BSA
Crankset (Max Ring): 52 mm Boost chainline 1x only (34t)
Rear Brake (Rotor): IS mount (180 mm max)
Rear Spacing: 148 mm
Rear Axle: M12 x 180L, TP = 1.5, TL = 20
Derailleur Hanger: Alternator 2.0 Swing Plate
Water Bottle Mounts: XS = 1, SM–XL = 2
Rack Mounts: Yes, uses Alternator 2.0 plates, requires Salsa Rack-Lock
Fender Mounts: NOT COMPATIBLE
Accessory Mounts: Yes, one pair
TopTube Mounts: Yes, compatible with Salsa EXP Series Direct Mount Top Tube Bag
Downtube Accessory Mounts: Yes, one pair

Size	XS	SM	MD	LG	XL
A. Effective Top Tube	570	594.1	615.3	639	659.3
B. Stand Over	702.9	722.6	742.1	772.1	792.9
C. Reach	410.7	433.6	453.6	475.5	492.6
Crank Arm Length	170	170	175	175	175
D. Stack	599	599	607.4	613.5	625.5
E. Total Seat Tube Length	342.9	370	395	432	457.2
F. Headtube Length	100	100	105	115	125
G. Headtube Angle	66.4	66.4	66.4	66.4	66.4
H. Seat Tube Angle	75.1	75.1	75.1	75.1	75.1
Handlebar Width	780mm	780mm	780mm	780mm	780mm
I. BB Drop	56.6	56.6	56.6	56.6	56.6
K. Chainstay Length	420-437	420-437	420-437	420-437	420-437
L. Fork Length Axle to Crown	510.5	510.5	510.5	510.5	510.5
M. Fork Offset	44	44	44	44	44
N. Wheelbase	1120	1142.5	1164.5	1180.5	1211.7
Recommended Rider Height	157cm–163cm	160cm–175cm	173cm–183cm	180cm–191cm	188cm–UP
Stem Length	50	50	50	50	50

Measurements based on:

an 510.5mm fork which is equivalent to an average 543mm length 29" 130mm suspension fork at 25% sag
a 29" x 2.6" tire measuring 756.5mm in diameter
Standover is measured vertically to top of top tube from a position 50mm forward of BB center with an unsagged suspension fork
Wheelbase at 420mm chainstay length
