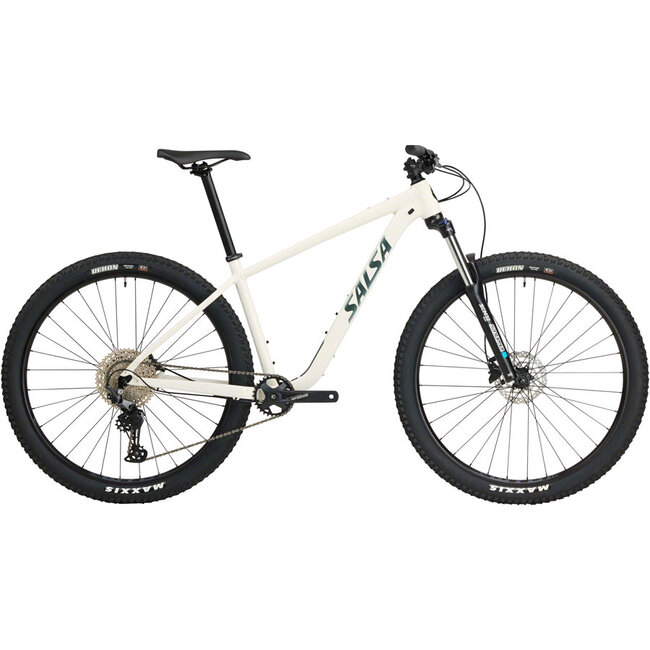

Rangefinder Deore 10 29 is the perfect introduction to your local trails. Its frame design keeps you feeling in control as you build your skills. The components reinforce your confidence, with a 120mm fork to soak up trail chatter, 29 x 2.6” wheels and tires to roll over obstacles, and a Shimano Deore 1 x 10-speed drivetrain. Cargo mounts on the frame let you carry more for longer off-road adventures. All together, Rangefinder makes mountain biking more accessible with smart spec and a price point that leaves plenty of room in your budget.
Frameset
- Frame
- Rangefinder
- Fork
- SR Suntour XCM32 Coil Boost NLO DS, 120mm
- Color
- Ceramic White
- Rear Shock
- N/A
Drivetrain
- Front Derailleur
- N/A
- Rear Derailleur
- Shimano Deore M5120 SGS
- Cassette
- Shimano Deore M4100 11–46t, 10-speed
- Chain
- Shimano HG54
- Crankset
- FSA Alpha Drive, 30t, FSA 124.5 mm bottom bracket
- Shifter
- Shimano Deore M4100
- Brakes and Rotors
- Shimano MT200, Shimano RT10 (Center Lock, 160 mm)
Components
- Headset (Upper/Lower)
- FSA Orbit NO.57B 1.5 ZS
- Stem
- Salsa Guide 31.8, 60 mm, 6d
- Handlebar
- Salsa Salt Flat 31.8, 750 mm width XS–SM; Salsa Rustler 31.8, 800 mm width M–XL
- Grips/Bar Tape
- Salsa File Tread
- Seatpost
- Salsa Guide 30.9, 0 offset
- Saddle
- WTB Volt Medium, Steel, 142 x 265 mm
Wheels
- Front Wheel
- Shimano TC500-B 15 x 110 mm TA hub, WTB ST i30 32h 29" rim
- Rear Wheel
- Shimano MT200-B 10 x 141 mm QR hub, WTB ST i30 32h 29" rim
- Tires
- Maxxis Rekon 29 x 2.6", EXO, Wire Bead
Weight
- Complete Bike Weight
- 32 lbs 8 oz (size Medium, with tubes, no pedals)
*Specification and pricing subject to change without notice.
- Design Wheel/Tire Sizes
- 29 x 1.9–2.6"
- Alternate Wheel/Tire Sizes
- 27.5 x 2.8–3.0"
- Suspension Fork Length (Travel)
- 100–130 mm
- Fork Offset
- 46 mm
- Headset, Upper
- ZS44
- Headset, Lower
- ZS56
- Seatpost
- 30.9 mm
- Seatpost Collar
- 35.0 mm
- Dropper Compatible (Routing)
- Yes (internal)
- Front Derailleur Clamp
- N/A
- Front Derailleur Type
- N/A
- Bottom Bracket
- 73 mm BSA, threaded
- Crankset (Max Ring)
- Boost 148 52 mm chainline only (32t max)
- Rear Brake (Rotor)
- 74 mm post mount (160–180 mm rotor)
- Rear Spacing
- 141 x 10 mm QR
- Derailleur Hanger
- FS2361
- Rear Rack Mounts
- Yes. Salsa Post-Lock seatpost collar required.
- Fender Mounts
- No
- Water Bottle Mounts
- 2
- Downtube Accessory Mounts
- 1
- Top Tube Mounts
- Yes, compatible with Salsa EXP Series Top Tube bag.
| Size |
XS |
SM |
MD |
LG |
XL |
| A. Effective Top Tube |
566.7 |
589 |
613.3 |
641.9 |
668.5 |
| B. Stand Over |
688.6 |
708.3 |
747.2 |
779.1 |
808.7 |
| C. Reach |
400.6 |
421.5 |
444.4 |
470.4 |
494.3 |
| Crank Arm Length |
170 |
170 |
175 |
175 |
175 |
| D. Stack |
601.9 |
606.4 |
611 |
620.1 |
629.3 |
| E. Total Seat Tube Length |
355 |
381 |
431 |
470 |
508 |
| F. Headtube Length |
95 |
100 |
105 |
115 |
125 |
| G. Headtube Angle |
68.6 |
68.6 |
68.6 |
68.5 |
68.5 |
| H. Seat Tube Angle |
74.6 |
74.6 |
74.6 |
74.5 |
74.5 |
| Handlebar Width |
750mm |
750mm |
800mm |
800mm |
800mm |
| I. BB Drop |
62 |
62 |
61.9 |
61.8 |
61.7 |
| K. Chainstay Length |
439 |
439 |
439 |
439 |
439 |
| L. Fork Length Axle to Crown |
501 |
501 |
501 |
501 |
501 |
| M. Fork Offset |
51 |
51 |
51 |
51 |
51 |
| N. Wheelbase |
1101.9 |
1124.7 |
1149.6 |
1179.4 |
1207.1 |
| Recommended Rider Height |
157cm–168cm |
160cm–175cm |
173cm–183cm |
180cm–191cm |
188cm–UP |
| Stem Length |
60 |
60 |
60 |
60 |
60 |
Measurements based on:
- OE spec 120mm 29/27.5+ suspension fork at 25% sag
- 27.5 x 2.8" tire measuring 722mm in diameter
- Standover is measured from vertically from ground to the top of the toptube, 50mm forward of the BB. Add 8-12.5mm (0.3-0.5") for 29 x 2.4-2.6" wheels/tires
