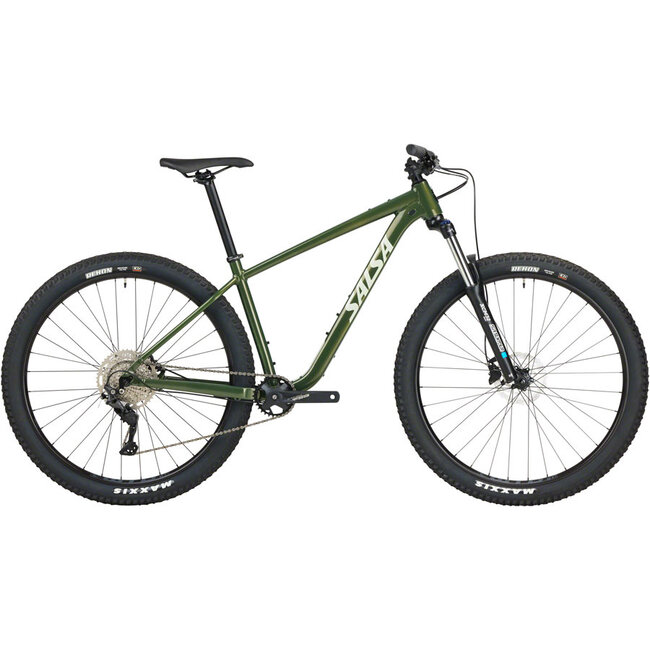

Rangefinder Deore 10 29 puts you on the trail to mountain biking happiness. Its frame geometry keeps you poised for whatever the trail holds. A 120mm fork soaks up impacts while 29 x 2.6” wheels and tires roll easily over obstacles with tons of traction. Cargo mounts give you the flexibility to dream up longer rides, and the Shimano Deore 1 x 10-speed drivetrain is a dependable choice that will see you through all the trail’s ups and downs. Start your singletrack journey with Rangefinder.
Frameset
- Frame
- Rangefinder
- Fork
- SR Suntour XCM32 Coil Boost NLO DS, 120mm
- Color
- Dark Moss Green
- Rear Shock
- N/A
Drivetrain
- Front Derailleur
- N/A
- Rear Derailleur
- Shimano Deore M5120 SGS
- Cassette
- Shimano Deore M4100 11–46t, 10-speed
- Chain
- Shimano HG54
- Crankset
- FSA Alpha Drive, 30t, FSA 124.5 mm bottom bracket
- Shifter
- Shimano Deore M4100
- Brakes and Rotors
- Shimano MT200, Shimano RT10 (Center Lock, 160 mm)
Components
- Headset (Upper/Lower)
- FSA Orbit NO.57B 1.5 ZS
- Stem
- Salsa Guide 31.8, 60 mm, 6d
- Handlebar
- Salsa Salt Flat 31.8, 750 mm width XS–SM; Salsa Rustler 31.8, 800 mm width M–XL
- Grips/Bar Tape
- Salsa File Tread
- Seatpost
- Salsa Guide 30.9, 0 offset
- Saddle
- WTB Volt Medium, Steel, 142 x 265 mm
Wheels
- Front Wheel
- Shimano MT400-B 15 x 110 mm TA hub, WTB ST i30 32h 29" rim
- Rear Wheel
- Shimano MT200-B 10 x 141 mm QR hub, WTB ST i30 32h 29" rim
- Tires
- Maxxis Rekon 29 x 2.6", EXO, Wire Bead
Weight
- Complete Bike Weight
- 32 lbs 8 oz (size Medium, with tubes, no pedals)
*Specification and pricing subject to change without notice.
- Design Wheel/Tire Sizes
- 29 x 1.9–2.6"
- Alternate Wheel/Tire Sizes
- 27.5 x 2.8–3.0"
- Suspension Fork Length (Travel)
- 100–130 mm
- Fork Offset
- 46 mm
- Headset, Upper
- ZS44
- Headset, Lower
- ZS56
- Seatpost
- 30.9 mm
- Seatpost Collar
- 35.0 mm
- Dropper Compatible (Routing)
- Yes (internal)
- Front Derailleur Clamp
- N/A
- Front Derailleur Type
- N/A
- Bottom Bracket
- 73 mm BSA, threaded
- Crankset (Max Ring)
- Boost 148 52 mm chainline only (32t max)
- Rear Brake (Rotor)
- 74 mm post mount (160–180 mm rotor)
- Rear Spacing
- 141 x 10 mm QR
- Derailleur Hanger
- FS2361
- Rear Rack Mounts
- Yes. Salsa Post-Lock seatpost collar required.
- Fender Mounts
- No
- Water Bottle Mounts
- 2
- Downtube Accessory Mounts
- 1
- Top Tube Mounts
- Yes, compatible with Salsa EXP Series Top Tube bag.
| Size |
XS |
SM |
MD |
LG |
XL |
| A. Effective Top Tube |
566.7 |
589 |
613.3 |
641.9 |
668.5 |
| B. Stand Over |
688.6 |
708.3 |
747.2 |
779.1 |
808.7 |
| C. Reach |
400.6 |
421.5 |
444.4 |
470.4 |
494.3 |
| Crank Arm Length |
170 |
170 |
175 |
175 |
175 |
| D. Stack |
601.9 |
606.4 |
611 |
620.1 |
629.3 |
| E. Total Seat Tube Length |
355 |
381 |
431 |
470 |
508 |
| F. Headtube Length |
95 |
100 |
105 |
115 |
125 |
| G. Headtube Angle |
68.6 |
68.6 |
68.6 |
68.5 |
68.5 |
| H. Seat Tube Angle |
74.6 |
74.6 |
74.6 |
74.5 |
74.5 |
| Handlebar Width |
750mm |
750mm |
800mm |
800mm |
800mm |
| I. BB Drop |
62 |
62 |
61.9 |
61.8 |
61.7 |
| K. Chainstay Length |
439 |
439 |
439 |
439 |
439 |
| L. Fork Length Axle to Crown |
501 |
501 |
501 |
501 |
501 |
| M. Fork Offset |
51 |
51 |
51 |
51 |
51 |
| N. Wheelbase |
1101.9 |
1124.7 |
1149.6 |
1179.4 |
1207.1 |
| Recommended Rider Height |
157cm–168cm |
160cm–175cm |
173cm–183cm |
180cm–191cm |
188cm–UP |
| Stem Length |
60 |
60 |
60 |
60 |
60 |
Measurements based on:
- OE spec 120mm 29/27.5+ suspension fork at 25% sag
- 27.5 x 2.8" tire measuring 722mm in diameter
- Standover is measured from vertically from ground to the top of the toptube, 50mm forward of the BB. Add 8-12.5mm (0.3-0.5") for 29 x 2.4-2.6" wheels/tires
