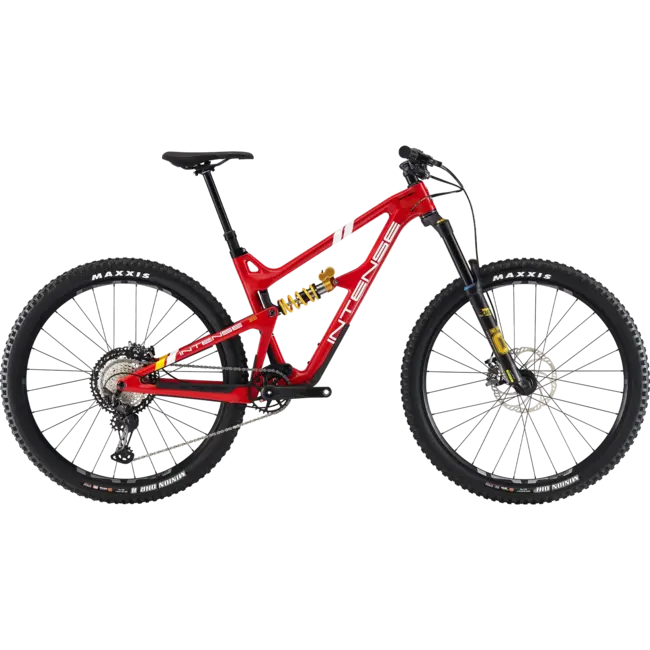

Primer S

$4,399.00 Excl. tax

Our high-spec Primer S is pure trail bike perfection… everywhere. Providing the best build in our trail lineup, riding on 29" wheels and supported by Öhlins 160mm/140mm suspension. Read more.

Rolling on super-fast 29” wheels, the Primer S will give you aggressive yet efficient trail-flattening speed over any obstacle, both on challenging climbs and technical descents. In short, the Primer S is the ultimate all-around premium trail bike. It could be the only mountain bike you’ll ever need.

VERSATILITY

The Primer trail bike is the most versatile model in our range. With 140mm of rear travel and 160mm up front, we have designed a bike that is capable and balanced but also nimble and fun at the same time, giving you confidence on long, all-day rides, jumps, or laps in your local woods.

TRUE TO TRAIL The frame is the heart and soul of any bike. Our Primers are built around our perfectly designed monocoque carbon frame, with a dual-strut design rear triangle, optimized carbon fiber layup, a carbon top link, and adjustable 'Flip Chip" technology.

FLIP CHIP ADJUSTMENT

The Primer 29 has a 'Flip Chip' feature which allows you to alter your bike's geometry between two positions. The High setting is best in technical terrain, while the Low is more suitable for flow and bike park-style riding.

THE JS TUNED TRAIL LINK

We talk about JS Suspension a lot here at INTENSE. JS stands for Jeff Steber (our founder and CEO); simply put, it is a sophisticated suspension system that uses two counter-rotating links to connect the front and rear triangles of the bike. The links are precisely placed to separate the pedaling and braking forces from the suspension performance. Every model in our range has its own personal and specific JS tune.

	BUILD	S
	WEIGHT	33 lbs 11 oz // 15.28 kg
	FRAME	Primer S 29” Optimized Layup Monocoque UD Carbon Front and Rear Triangle, Carbon top link, Ti hardware, internal shift, dropper post and brake routing. ISCG05 mounts, flak guard armor, 140MM (5.5") travel
	FORK	Ohlins RFX 36 M.2 / 160MM / Boost
	SHOCK	Ohlins TTX22M Coil / 210MM x 50MM (140MM) / Front Reducer Size - 20MM X 6MM, Rear Reducer Size - 20MM x 8MM.
	COIL/SPRING	350 lbs (S Size for 54 - 64 kg rider weight) / 450 lbs (M Size for 64 - 73 kg rider weight) / 500 lbs (L Size for 73 - 80 kg rider weight) / 550 lbs (XL Size for 80 - 84 kgs rider weight).
	HEADSET	Cane Creek 40 / ZS44-EC49
	STEM	e*Thirteen Plus 35 40MM
	HANDLEBARS	e*Thirteen Race Carbon 35x800mm
	GRIPS	IINTENSE Lock-on
	BRAKESET	Magura MT7 Pro Front (Four Piston) Magura Storm HC 203MM Rotors / Magura MT7 Pro Rear (Four Piston) Magura Storm HC 180MM Rotors
	SHIFTER	Shimano XT 12SP I-Spec
	DERAILLEUR	Shimano XT 12SP
	CRANK	e*Thirteen Helix Plus 12SP / 32t / 170MM SM-LG/ 175mm XL / Boost
	BOTTOM BRACKET	e*Thirteen 24mm (Threaded)
	CASSETTE	Shimano XT 12SP / 11-51T
	CHAIN	Shimano XT 12SP
	WHEELSET	e*Thirteen LG1 Enduro 30mm Rim
	HUBS	e*Thirteen LG1 Race SL hubs 32 Hole 15x110 front, 12x148 rear hub 6-bolt
	TIRES	Front: MAXXIS Minion DHF WT Maxx Grip 3C EXO 29" x 2.50" / Rear: MAXXIS Minion DHR II WT Maxx Terra 3C EXO+ 29" x 2.40"
	SEATPOST	e*Thirteen Vario Infinite Dropper w/ adjustable travel 31.6MM / 120MM SM / 150MM MD / 180MM LG-XL (Frame Size Specific)
	SADDLE	SDG Radar w/ Cr-Mo Rail

BASED OFF HIGH SETTING

HIGH SETTING	SM	MD	LG	XL
SEATTUBE LENGTH	408mm	431mm	451mm	475mm
TOPTUBE LENGTH	581mm	611mm	640mm	676mm
STACK	618mm	619mm	628mm	647mm
REACH	402mm	433mm	458mm	488mm
BB HEIGHT	352mm	352mm	352mm	352mm
BB DROP	22.5mm	22.8mm	23mm	23mm
HEADTUBE LENGTH	90mm	90mm	100mm	120mm
HEADTUBE ANGLE	64.8°	64.9°	64.9°	64.9°
SEATUBE ANGLE (EFFECTIVE)	73.9°	73.9°	73.9°	73.9°
STANDOVER HEIGHT	824mm	824mm	828mm	837mm
CHAINSTAY LENGTH	440mm	440mm	440mm	440mm
WHEELBASE	1177.5mm	1207.5mm	1236mm	1247mm
LOW SETTING	SM	MD	LG	XL
SEATTUBE LENGTH	408mm	431mm	451mm	475mm
EFFECTIVE TOPTUBE	583mm	614mm	642mm	679mm
STACK	622mm	623mm	633mm	652mm
REACH	396mm	427mm	452mm	482mm
BB HEIGHT	345mm	345mm	345mm	345mm
BB DROP	30mm	30mm	30mm	30mm
HEADTUBE LENGTH	90mm	90mm	100mm	120mm
HEADTUBE ANGLE	64.3°	64.3°	64.3°	64.3°
SEATTUBE ANGLE (EFFECTIVE)	73.2°	73.2°	73.2°	73.2°
STANDOVER HEIGHT	818mm	818mm	822mm	831mm
CHAINSTAY LENGTH	441.5mm	441.5mm	441.5mm	441.5mm
WHEELBASE	1178.6mm	1209mm	1238mm	1276mm
