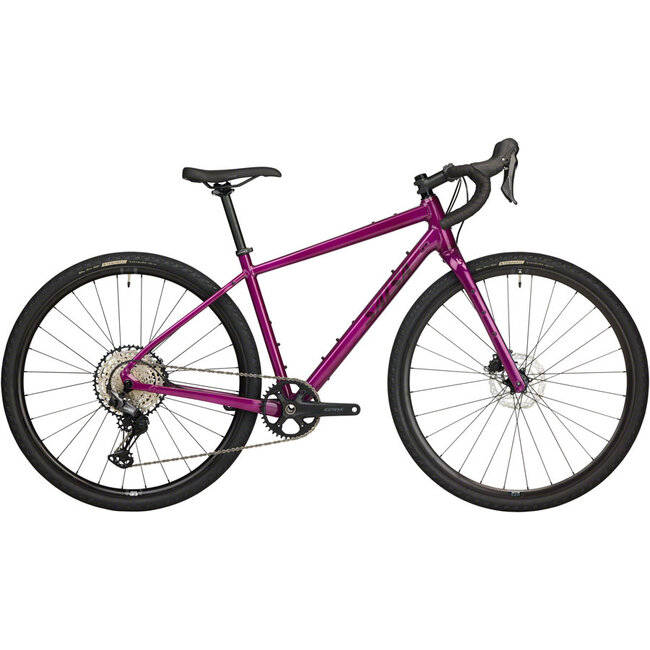

Journeyer stands out among adventure road and gravel bikes. It’s comfortable (upright geometry and Waxwing carbon fork), versatile (rack, fender, and accessory mounts), and capable (700c x 45mm front and 700c x 50mm rear tire clearance). The Shimano GRX 610 1x12 drivetrain is a gravel-focused design with a wide-range cassette for plenty of gear range. Whether you’re starting to train for your first gravel event or just enjoy exploring the backroads, Journeyer is one of the top adventure road and gravel bikes out there.
Frame
Journeyer Drop-Bar Thru-Axle
Color
Dark Magenta
Fork
Waxwing Carbon V2
Headset
FSA NO.42/ACB
Seatpost
Salsa Guide
Stem
Salsa Guide
Grips/Bar Tape
Black cork
Saddle
WTB Volt Medium Steel
Handlebar
Salsa Cowbell 3
Front Derailleur
N/A
Rear Derailleur
Shimano GRX RX822-SGS
Cassette
Shimano Deore M7100, 10–51t, 12-speed
Chain
Shimano M7100
Crankset
Shimano GRX RX610, 40t
Shifter
Shimano GRX RX610
Brake Levers
Shimano GRX RX610
Brake Calipers
Shimano GRX RX400
Bottom Bracket
Shimano RS501
Rotors
Shimano RT10 (160mm front and rear)
Front Tire
Teravail Washburn 700c x 42mm, Durable casing, tubeless-ready
Rear Tire
Teravail Washburn 700c x 42mm, Durable casing, tubeless-ready
Front Hub
Shimano 12 x 100mm
Rear Hub
Shimano 12 x 142mm
Spoke
14g, black
Rim
WTB EZR i23, TCS, 28h, 700c
*Specifications are subject to change without notice
| Size | 49cm | 51cm | 53cm | 55cm | 57cm | 60cm |
|---|---|---|---|---|---|---|
| A. Effective Top Tube | 493.0 | 510.0 | 530.0 | 550.0 | 570.0 | 600.0 |
| B. Stand Over | 617.0 | 652.0 | 688.0 | 724.0 | 760.0 | 807.0 |
| C. Reach | 366.0 | 369.0 | 372.0 | 376.0 | 387.0 | 409.0 |
| D. Stack | 510.0 | 528.0 | 552.0 | 570.0 | 599.0 | 627.0 |
| E. Total Seat Tube Length | 340.0 | 380.0 | 410.0 | 450.0 | 490.0 | 520.0 |
| F. Headtube Length | 90.0 | 105.0 | 130.0 | 150.0 | 180.0 | 210.0 |
| G. Headtube Angle |
68.5
|
69.5
|
69.5
|
69.5
|
69.5
|
69.5
|
| H. Seat Tube Angle |
76.0
|
75.0
|
74.0
|
73.0
|
73.0
|
73.0
|
| I. BB Drop | 70.0 | 70.0 | 70.0 | 70.0 | 70.0 | 70.0 |
| K. Chainstay Length | 440.0 | 440.0 | 440.0 | 440.0 | 440.0 | 440.0 |
| L. Fork Length Axle to Crown | 402.0 | 402.0 | 402.0 | 402.0 | 402.0 | 402.0 |
| M. Fork Offset | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 |
| N. Wheelbase | 1027.0 | 1028.0 | 1040.0 | 1051.0 | 1072.0 | 1104.0 |
| Crank Arm Length | 165.0 | 165.0 | 170.0 | 172.5 | 175.0 | 175.0 |
| Handlebar Width | 380.0 | 400.0 | 420.0 | 440.0 | 460.0 | 460.0 |
| Recommended Rider Height | 142.0 - 152.0 | 150.0 - 160.0 | 157.0 - 170.0 | 165.0 - 178.0 | 173.0 - 185.0 | 183.0 - 196.0 |
| Stem Length | 60.0 | 70.0 | 80.0 | 80.0 | 90.0 | 100.0 |
