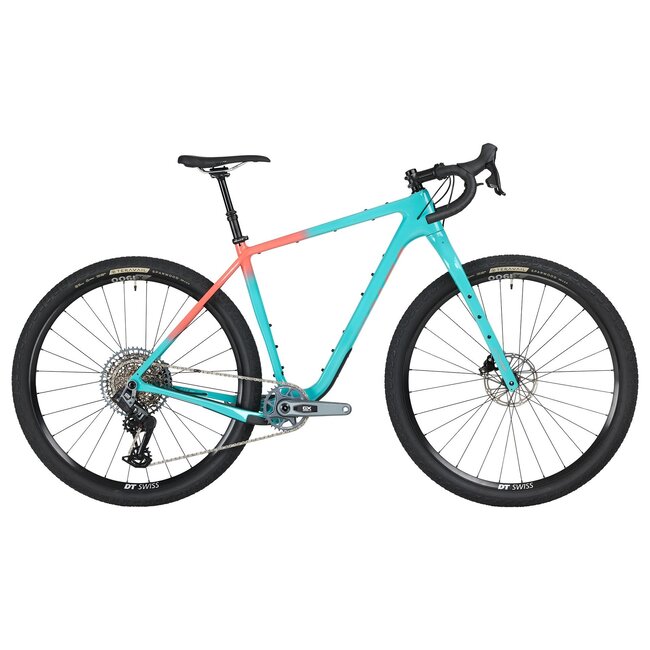

Salsa Cutthroat C Rival GX AXS Transmission

Frameset

Frame

Cutthroat C

Fork

Cutthroat Carbon Deluxe

Color

Teal

Rear Shock

N/A

Drivetrain

Front Derailleur

N/A

Rear Derailleur

SRAM GX Eagle AXS Transmission

Cassette

SRAM XG-1275, 10–52t, 12-speed

Chain

SRAM GX Eagle Transmission Flattop

Crankset

SRAM GX Eagle Transmission DUB, 34t

Shifter

SRAM Rival AXS, D2

Brakes and Rotors

SRAM Rival hydraulic disc brakes, SRAM CenterLine rotors (6-bolt, 160mm)

Components

Headset (Upper/Lower)

FSA NO.42/ACB

Stem

Salsa Guide

Handlebar

Salsa Cowchipper

Grips/Bar Tape

Velo anti-slip, shock-proof silicone tape

Seatpost

TranzX JD-YSP38 dropper post, 90mm travel

Saddle

WTB SL8 Medium Cromoly

Wheels

Front Wheel

DT Swiss X1900 Spline 15 x 110mm (taped, DT Swiss tubeless valve included)

Rear Wheel

DT Swiss X1900 Spline 12 x 148mm (taped, DT Swiss tubeless valve included)

Tires

Teravail Sparwood, 29 x 2.2", Durable casing, tubeless-ready

Weight

Complete Bike Weight

23lb 13oz (size 56)

Design Wheel x Tire Size

29 x 2.25" (29 x 2.4" Max) (Some front derailleurs may reduce tire clearance. Check manufacturer’s specifications to confirm clearance before installing.)

Susp Fork Length (Travel)

506 mm (100 mm Travel)

Rigid Fork Length

483 mm

Fork Offset

51 mm

Front Spacing

110 x 15 mm Thru-axle

Front Brake (Rotor)

Flat mount (160–180 mm), flat mount frame standard (35 mm thickness), 42 mm bolt length

Front Rack Mounts

Yes, lowrider compatible. Salsa Down Under rack recommended.

Fork Accessory Mounts

Yes, one set of Three-Pack mounts on each fork leg

Headset, Upper

IS41

Headset, Lower

IS52

Seatpost

27.2 mm

Seat Collar

32.0 mm

Dropper Compatible (Routing)

Yes, internal

Front Derailleur Type

Road, braze-on, 2x, bottom-pull

Bottom Bracket

Press Fit BB92, 41 x 92 mm

Crankset (Max & Min Ring)

1x MTN Boost: 40t Max; 2x RD Boost outer ring: 46–50t, inner ring: 30–36t *Oval chainrings subtract 2t from max*

Rear Brake (Rotor)

Flat mount (140–160 mm), flat mount frame standard (25mm Thickness), 32 mm bolt length

Rear Spacing

148 x 12 mm Thru-axle

Rear Axle Size

Ø12 x 174, TP=1.5, TL=20

Derailleur Hanger

SRAM UDH

Rear Rack Mounts

Yes, Salsa Rack Lock seatpost collar required. Salsa Wanderlust Rack recommended. Salsa Bent Rack Struts (part #RK8030) required for installation on 58 cm and 60 cm frames. Not compatible with Salsa Wanderlust HD Rack

Rear Fender Mounts

n/a

Water Bottle Mounts

Frames up to 54cm: 2 in main triangle. Frames 56cm and larger: 3 in main triangle.

Under Downtube Mount

Yes, two pair.

Top Tube Mounts

Yes, compatible with Salsa Top Tube bag.

Internal Dropper Post Routing

1x mechanical drivetrain: Route the dropper post cable through the drive side of the down tube. Di2 drivetrains: Mount the Di2 battery in the seatpost, then route the dropper post cable through the drive side of the downtube.

External Dropper Post Routing

1x and 2x mechanical and Di2 drivetrains:Route the dropper post cable through the dynamo rear light holes on the non-drive side of the top tube.

Size	52cm	54cm	56cm	58cm	60cm
A. Effective Top Tube	520	540	560	580	600
B. Stand Over	700	742	811	852	874
C. Reach	357	372	385	394	406
Crank Arm Length	165	170	175	175	175
D. Stack	585	592	620	645	644
E. Total Seat Tube Length	356	419	508	559	584
F. Headtube Length	90	98	127	154	175
G. Headtube Angle	69	69	69	69	69
H. Seat Tube Angle	74.5	74.25	74.25	74	73.75
Handlebar Width	440	460	480	500	520
I. BB Drop	70	70	70	70	70
K. Chainstay Length	445	445	445	445	445
L. Fork Length Axle to Crown	483	483	483	483	483
M. Fork Offset	51	51	51	51	51
N. Wheelbase	1050	1066	1091	1110	1129
Recommended Rider Height	154cm–168cm	168cm–175cm	173cm–185cm	183cm–193cm	190cm–UP
Stem Angle (deg)	300	300	300	300	300
Stem Length	60	70	80	80	90

Measurements based on:

• an 483mm AC x 51mm offset fork which is equivalent to an average 100mm 29" suspension fork at 25% sag
• a 29" x 2.2" tire measuring 740mm in diameter
• Standover for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center
