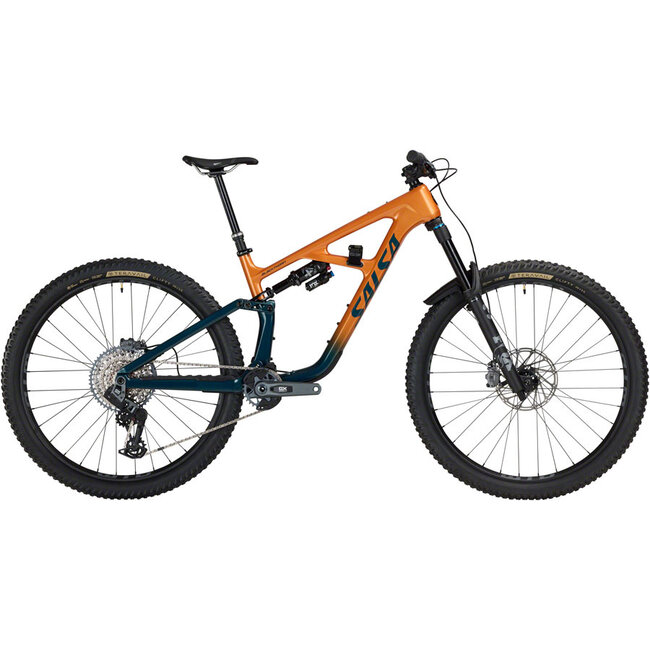

Blackthorn 145 C GX Transmission is the tool of choice for all-mountain adventures. The combo of a carbon frame, Split Pivot suspension, and our all-mountain geometry makes for a comfortable, confident ride both up and down the mountain.
145mm of Split Pivot suspension travel delivers superb small-bump compliance, remarkable climbing ability, and reliable traction even while braking. Paired with a Fox 36 Performance Elite 160mm fork, it’s a platform well-suited to the ups and downs of epic all-mountain rides. Blackthorn’s cargo capacity adds to its all-day capability, with space for two bottles, your tube and multitool, and mounts for our EXP-R Series Trillium Top Tube Bag or a K-Edge computer mount.
The SRAM GX Transmission drivetrain strikes a perfect balance with the precision and speed of electronic shifting and the durability of SRAM’s Full Mount derailleur design.
Saddle up and why Blackthorn 145 C DLX GX Transmission is the best all-mountain bike for chasing Adventure by Bike in the mountains.
Frame
Blackthorn 145 Carbon
Color
Slate/Terracotta
Suspension Fork
Fox 36 Performance Elite, 160mm
Rear Shock
Fox Float X Performance Elite
Headset
FSA Orbit 1.5E ZS NO.57E
Seatpost
TranzX REVERSE w/ GL Stealth MMX Lever, SM: 160mm travel; MD: 180mm travel; LG–XL: 210mm travel
Stem
Salsa 35.0 Guide Trail, 40mm
Grips/Bar Tape
WTB Wavelength Lock-On
Saddle
WTB Solano, Medium, Steel SL, Fusion Form
Handlebar
Race Face Turbine
Front Derailleur
N/A
Rear Derailleur
SRAM GX Eagle AXS Transmission
Cassette
SRAM GX Eagle Transmission, 10–52t, 12-speed
Chain
SRAM GX Eagle Transmission Flattop
Crankset
SRAM GX Eagle Transmission, 30t w/ MRP 1x iO SL ISCG-05 aluminum bashguard
Shifter
SRAM AXS Pod controller, Right, w/ MatchMaker X Clamp
Brake Levers
SRAM Maven Bronze Stealth
Brake Calipers
SRAM Maven Bronze Stealth
Bottom Bracket
SRAM DUB BSA 73mm MTB Wide
Rotors
SRAM CenterLine 2.0 (6-bolt, 200mm front and rear)
Front Tire
Teravail Clifty, 29 x 2.5", Durable casing, WTB TCS Sealant Included
Rear Tire
Teravail Clifty, 29 x 2.5", Durable casing, WTB TCS Sealant Included
Front Hub
WTB Frequency 15 x 110mm
Rear Hub
WTB Frequency 12 x 148mm
Spoke
Double butted Pillar stainless steel, black
Rim
WTB KOM Tough i30 TCS, 32h
*Specifications are subject to change without notice
| Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| A. Effective Top Tube | 589.0- 590.0 | 611.0- 612.0 | 633.0- 634.0 | 655.0- 656.0 |
| B. Stand Over | 746.0- 743.0 | 746.0- 743.0 | 747.0- 743.0 | 747.0- 743.0 |
| C. Reach | 452.0- 449.0 | 472.0- 469.0 | 492.0- 489.0 | 512.0- 509.0 |
| D. Stack | 612.0- 615.0 | 621.0- 624.0 | 630.0- 633.0 | 639.0- 642.0 |
| E. Total Seat Tube Length | 405.0 | 430.0 | 455.0 | 480.0 |
| F. Headtube Length | 100.0 | 110.0 | 120.0 | 130.0 |
| G. Headtube Angle |
63.9
-
63.6
|
63.9
-
63.6
|
63.9
-
63.6
|
63.9
-
63.6
|
| H. Seat Tube Angle |
77.4
-
77.1
|
77.4
-
77.1
|
77.4
-
77.1
|
77.4
-
77.1
|
| I. BB Drop | 25.0- 30.0 | 25.0- 30.0 | 25.0- 30.0 | 25.0- 30.0 |
| J. BB Height | 351.0- 346.0 | 351.0- 346.0 | 351.0- 346.0 | 351.0- 346.0 |
| K. Chainstay Length | 432.0- 433.0 | 432.0- 433.0 | 432.0- 433.0 | 432.0- 433.0 |
| L. Fork Length Axle to Crown | 571.0 | 571.0 | 571.0 | 571.0 |
| M. Fork Offset | 43.0 | 43.0 | 43.0 | 43.0 |
| N. Wheelbase | 1219.0- 1220.0 | 1243.0- 1244.0 | 1268.0- 1269.0 | 1292.0- 1293.0 |
| Crank Arm Length | 165.0 | 165.0 | 170.0 | 170.0 |
| Handlebar Width | 760.0 | 800.0 | 800.0 | 800.0 |
| Recommended Rider Height | 157.0 - 170.0 | 168.0 - 180.0 | 178.0 - 191.0 | 188.0 - 201.0 |
| Stem Length | 40.0 | 40.0 | 40.0 | 40.0 |
